Praecis Environment-18 Complete System Installation:

Application: Ultra-Precision Drum Roll Lathe

Customer: n/a

Temperature Control Results:

Enclosure Critical Point held at ± 0.01 ºC with an ambient temperature of 20 °C ± 0.5 °C.

Sub-Systems:

  • ATCU-18 with HEPA filtration.
  • Freestanding enclosure.
  • Vibration-isolation granite base for the lathe.

Enclosure Description:

  • Lightweight, freestanding aluminum support structure. Casters for portability.
  • Clear vinyl strip (200 mm wide) wall construction for ease of access, IR energy reflection.

Enclosure Size:

Footprint: 4.1 m2
Volume: 8.7 m3
Air Velocity: 0.15 m/sec

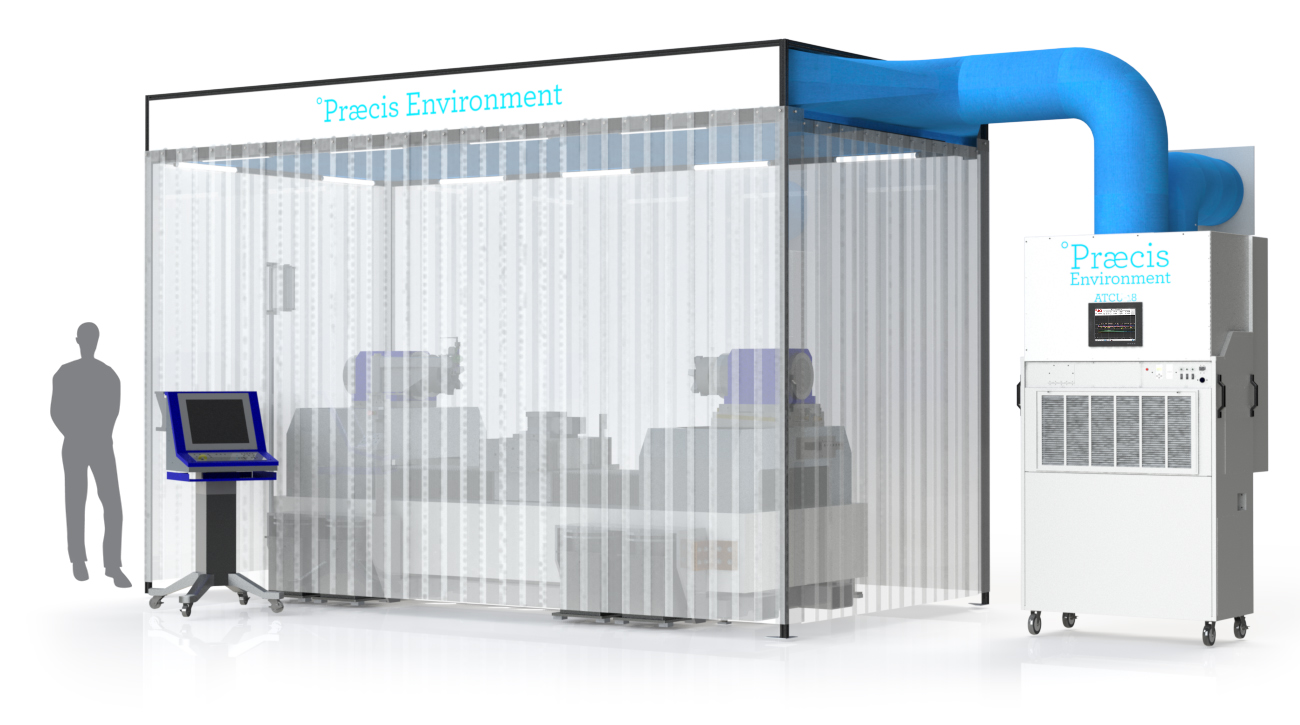

Praecis Environment-18 Complete System. View 1. Curtains closed.

Praecis Environment-18 Complete System. View 1. Curtains closed.

Praecis Environment-18 Complete System. View 2. Front curtains retracted revealing the drum roll lathe.

Praecis Environment-18 Complete System. View 2. Front curtains retracted revealing the drum roll lathe.

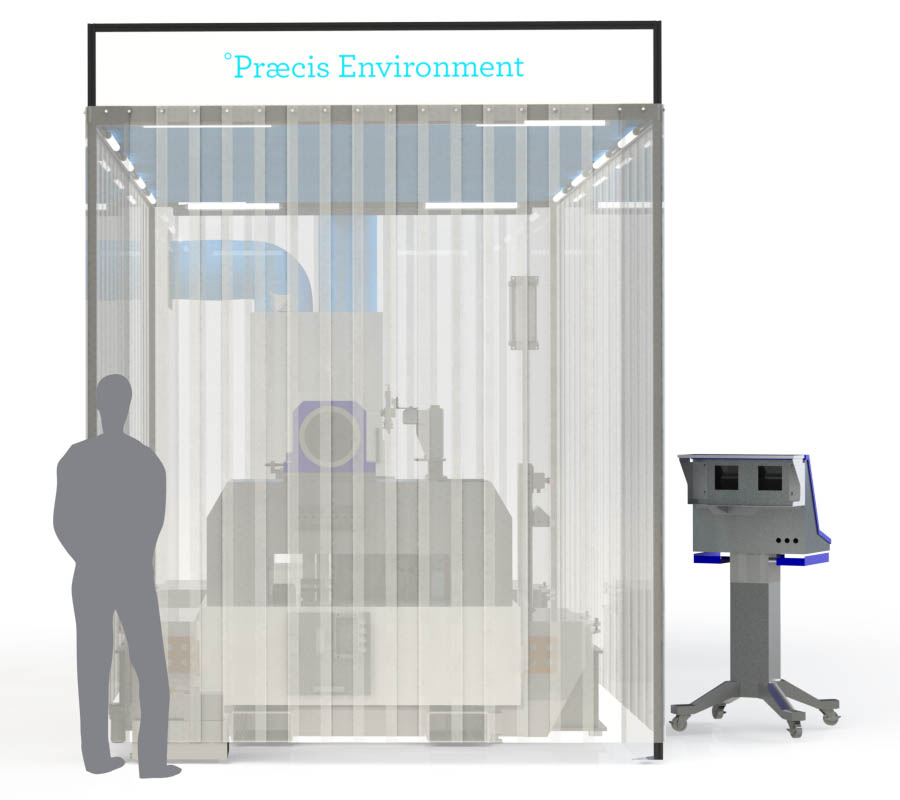

Praecis Environment-18 Complete System. View 3. End of the enclosure.

Praecis Environment-18 Complete System. View 3. End of the enclosure.
