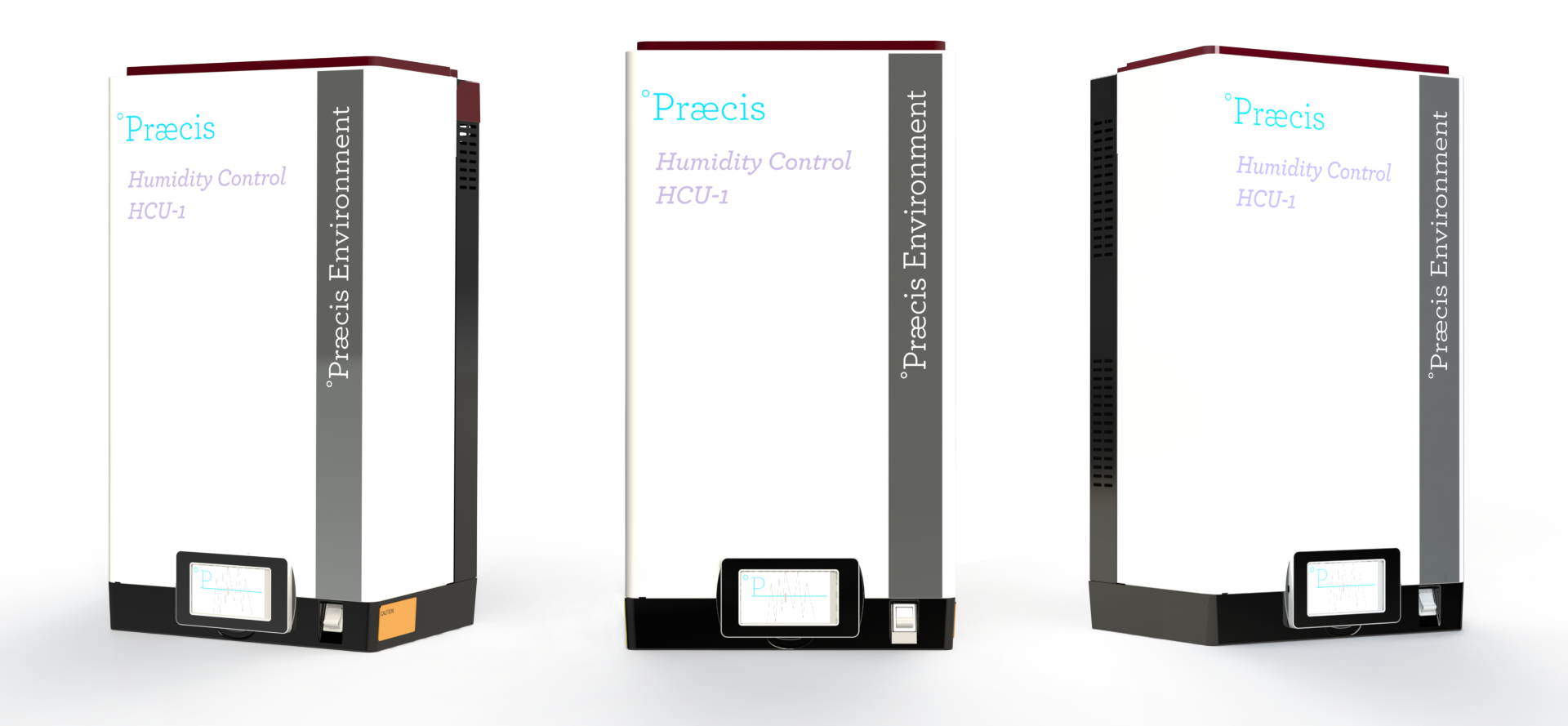

Humidity Control Unit-1

The HCU-1 accommodates enclosure:
Area: Up to 11 m²
Volume: Up to 12 m³



Ultra-Precision Humidity Control
For Small-to-medium Precision Operations.



Electric heater humidification is the ideal solution to meet the following requirements:

  • Exceptional relative humidity control performance up to ±1% RH. Accuracy across a range of continuous modulation from 0 to 100%.

  • Fully integrated with Praecis Environment Air Temperature Control Units. The user has a single interface via a laptop computer.

  • Præcis systems provide long-term humidity control without operator intervention.

  • Accommodates treated water of any quality with a range of water characteristics.

Configurable with E-2 and E-5 enclosure sizes.

Configurable with E-2 and E-5 enclosure sizes.

HCU-1 Display Panel

HCU-1 Display Panel

HCU-1 Specifications



User Interface

Real Time Display: Yes (4.3-in panel).
System Interface:  Laptop computer.
Data storage: PC in attached ATCU.
Data recording format: Excel, text.

Software Control

Praecis Climate Control software.

Electrical Requirements

Voltage (V): 24ac +10%/-15%
Phase: 1
Frequency (Hz): 50/60

PHYSICAL CHARACTERISTICS

Height:  0.712 m
Depth:  0.275 m
Width:  0.365 m
Weight while in use (kg): 35

Accommodates treated water of any quality with a range of water characteristics. including demineralised/deionised water with a conductivity of less than 1 µS/cm and softened water down to 0° fH.
