Air Temperature Control Unit-5

The ATCU-5 accommodates enclosure size range:

Area:  1 to 6 m²
Volume:  2 to 12 m³

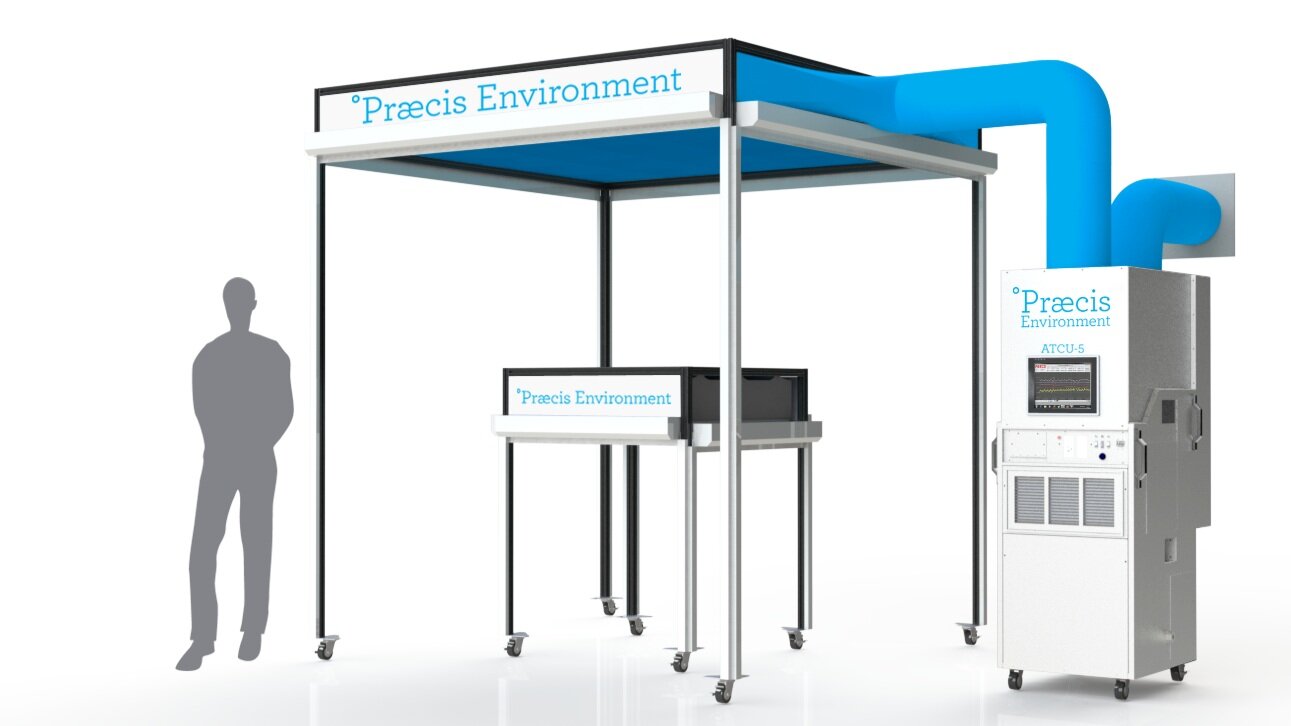

ATCU-5 all


Ultra-precision temperature control For Enhanced Diamond Turning Operations.



• We guarantee that a Præcis air temperature control system will maintain the temperature control in an enclosure ± 0.003 °C.

• Præcis systems provide long-term temperature stability and do not require operator intervention. The ATCU screen displays the temperature in real time, and if the temperature should go out of range, the ATCU will sound an alarm.

• If your Præcis Environment system should need adjustment, Præcis provides remote tuning from its headquarters.

See ATCU-5 Maximum Enclosure Size

See ATCU-5 Maximum Enclosure Size


ACTU-5 Specifications

Performance

Stability at Critical Point: ± 0.003 °C.
Set-point: Troom ± 2 °C.
Operating Conditions: 18 - 24 °C.
Air Flow Rates (m³/min): 10 - 36 (Adjustable)
Sound Level (dBA): 63

Electrical

Voltage (V): 230 ± 10%
Phase: 1
Frequency (Hz): 50/60
Max. Nominal Current - Cooling (A): 13
Max. Nominal Power Consumption (kW): 2.0
Breaker/Fuse Size (A): 30
Supply Power Wire Size (AWG): 1

REFRIGERANT

Refrigerant Type: R-407
Refrigerant Charge (kg): 1.5



ENCLOSURE SIZE

Enclosure area:  1 to 6 m2.
Enclosure volume:  2 to 12 m³.

PHYSICAL CHARACTERISTICS

Height: 1.93 m
Height without vent: 1.81 m
Depth: 0.69 m
Width: 1.0 m
Width without handles: 0.61 m
Weight (kg): 110
HEPA Filtration: Optional

User Interface

Computer Screen:  10.4-in touch-screen.
Data storage:  Thermograph/PC.
Data recording format:  Excel, text.
Channels:  Up to 8 channels of data.
Software:  Robust and user-friendly.
High/Low temperature alarm:  Yes.
Selectable sampling intervals:  Yes.
Moving average filtering:  Yes.
Adjustments:  Programmable set points.
Remote tuning from Præcis:  Yes.
User manuals:  English.
