Praecis Environment-5 Complete System Installation:

Application: Test Cell

Customer: n/a

Temperature Control Results:

Critical Point held at ± 0.01 ºC with an ambient temperature of 20 ºC ± 0.5 ºC (50:1).

Sub-Systems:

  • ATCU-5 with HEPA filtration.
  • Freestanding enclosure mounted on casters for easy transportability.
  • Porous fabric air distribution plenum suspended from the ceiling of the enclosure.

Enclosure Description:

  • Anodized aluminum support structure, mounted on casters for portability.
  • Porous fabric air distribution plenum suspended from ceiling of enclosure.
  • Clear vinyl roll-up curtains on front and rear allow rapid access to enclosure with a pull on a chain.  Motorized versions are available.
  • Foamed PVC panels, attached with Velcro for easy access shields lower half of enclosure.
  • Detachable front and rear allows for the enclosure to be rolled around device requiring temperature control
  • An extendable tilt-swivel mount to locate the ‘critical point’ thermistor at location identified by user.

Enclosure Size:

0.75 x 0.89 x 0.75 m (inside enclosure dimensions)
Footprint: 0.50 m²
Volume: 0.67 m³
Air Velocity: 0.5 m/sec

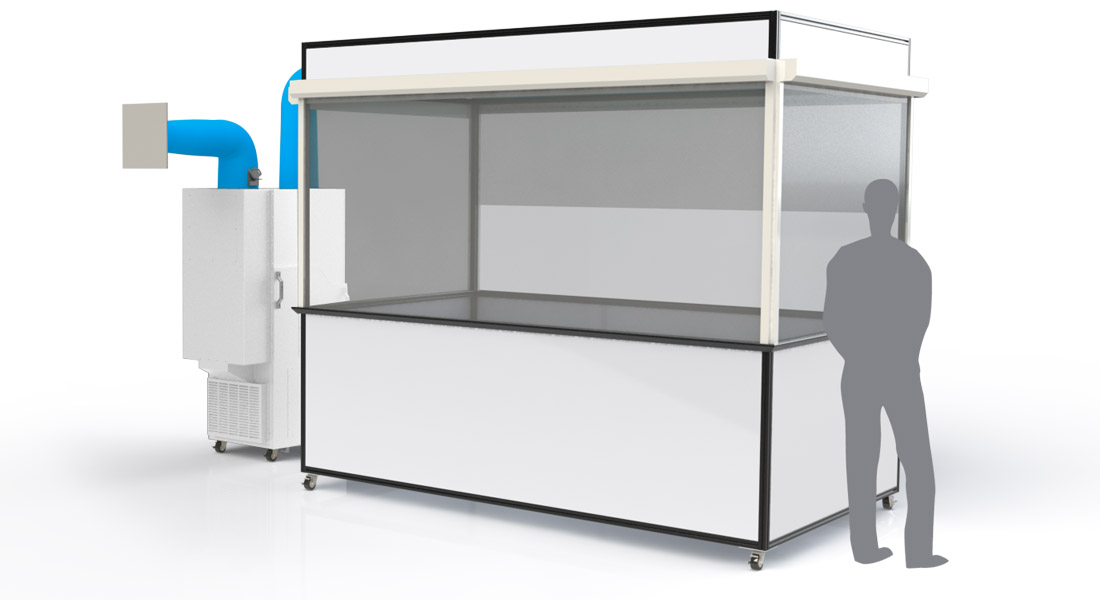

Praecis Environment-5 Complete System. Test Cell. View 1.

Praecis Environment-5 Complete System. Test Cell. View 1.

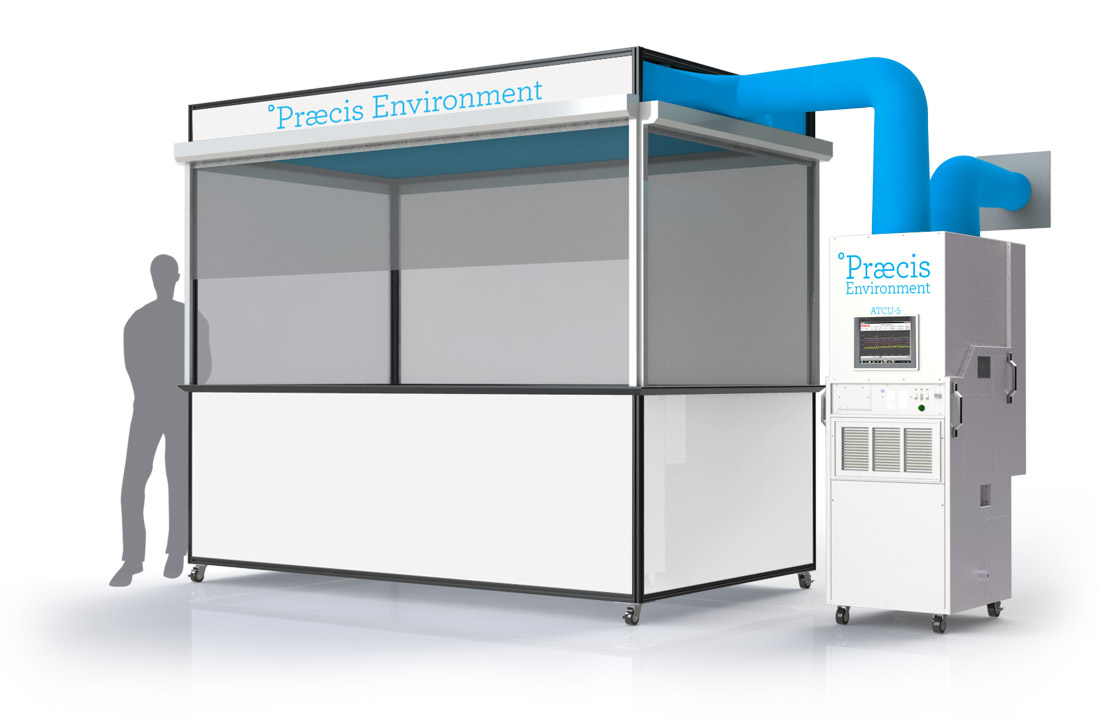

Praecis Environment-5 Complete System. Test Cell. View 2.

Praecis Environment-5 Complete System. Test Cell. View 2.

Comment:

This size enclosure with a footprint of 5.4 m² and a volume of 12.42 m³ is on the upper end of the enclosure size that can be accommodated by the ATCU-5.
