Praecis Environment-5 Complete System

Application: Temperature-controlled enclosure for performance demonstrations. Suitable for applications such as atomic-force microscope.

Customer: N/A

Temperature Control Results:

Critical Point held at +/- 0.004 °C in a +/- 2.0 °C environment (500:1).

Sub-Systems:

  • ATCU-5
  • Custom Praecis enclosure.
  • Porous fabric air distribution plenum suspended from the ceiling of the enclosure.
  • Optical bench with self-leveling pneumatic vibration isolation.

Enclosure Description:

  • Lightweight portable anodized aluminum support structure.
  • Downdraft laminar air flow from porous fabric plenum.
  • Roll-up clear PVC curtains on all four sides.

Enclosure Size:

0.75 x 0.75 x 0.89 m (D x W x H)
(Inside dimensions)

Footprint: 0.56 m²
Volume: 0.50 m³
Air Velocity: 0.5 m/sec

Comment:

When used as a demonstrator in a crowded exhibition hall, this system maintained the temperature at the Critical Point to within +/- 0.005 ºC with the front curtain open to the room.

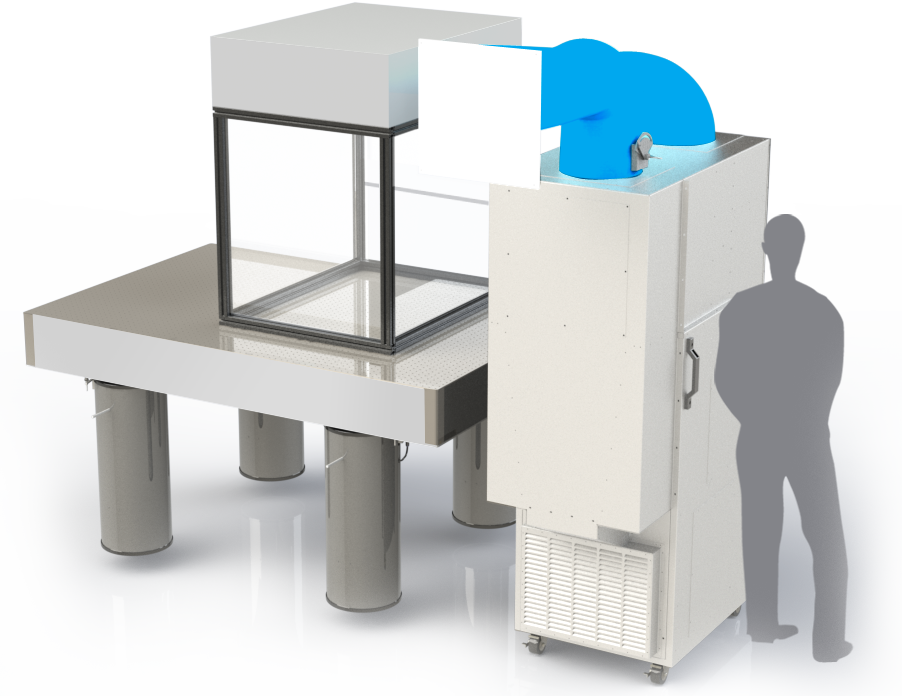

      Praecis Environment-5 Complete System.     Performance Demonstrator. View 1.



Praecis Environment-5 Complete System. Performance Demonstrator. View 1.



      Praecis Environment-5 Complete System.     Performance Demonstrator. View 2.



Praecis Environment-5 Complete System. Performance Demonstrator. View 2.

   Praecis Environment-5 Complete System.     Performance Demonstrator. View 3.

Praecis Environment-5 Complete System. Performance Demonstrator. View 3.
