Praecis Environment-5 Complete System Installation:

Application: Test Bench

Customer: High precision motion control manufacturer.

Temperature Control Results:

Enclosure Critical Point held at ±.005 ºC with an ambient temperature of 20 ºC ± 1 ºC.

Sub-Systems:

  • ATCU-5 with HEPA filtration.
  • Free-standing enclosure mounted on casters for easy transportability
  • Porous fabric air distribution plenum suspended from the ceiling of the enclosure.

Enclosure Description:

  • Lightweight, free-standing (for improved vibration isolation) anodized aluminum support structure.
  • Mounted on casters for convenient transportability.
  • Clear vinyl roll-up curtains on all four sides.

Enclosure Size:

Volume: 2.5 m3
Footprint: 1.56 m2
Air Velocity: 0.2 m/sec

  Praecis Environment-5 Complete System.



Praecis Environment-5 Complete System.

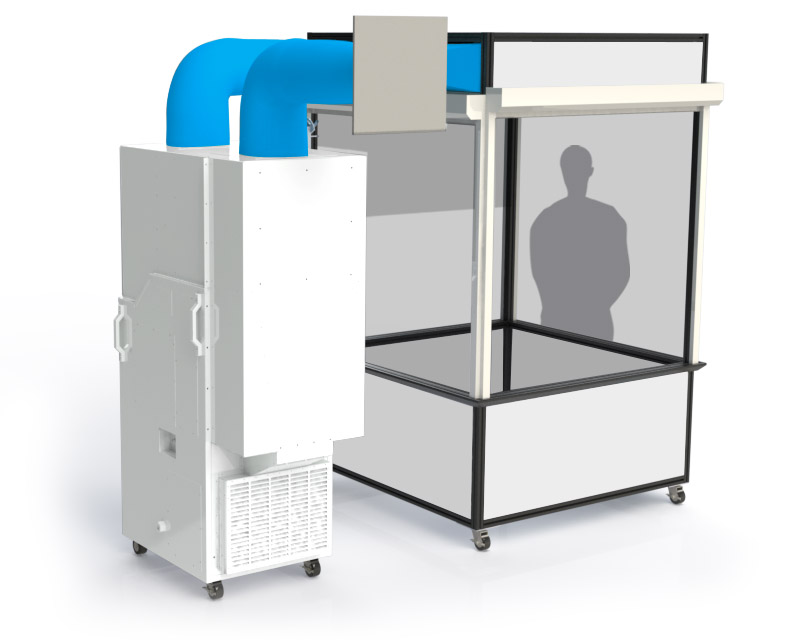

Praecis Environment-5 Complete System. Test Bench. View 1.

Praecis Environment-5 Complete System. Test Bench. View 1.

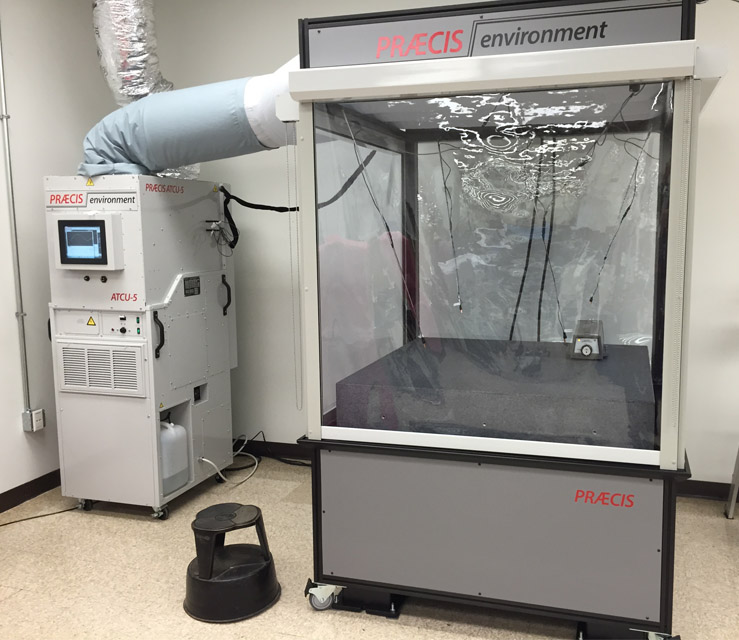

  Praecis Environment-5 Complete System. Test Bench. View 2.



Praecis Environment-5 Complete System. Test Bench. View 2.

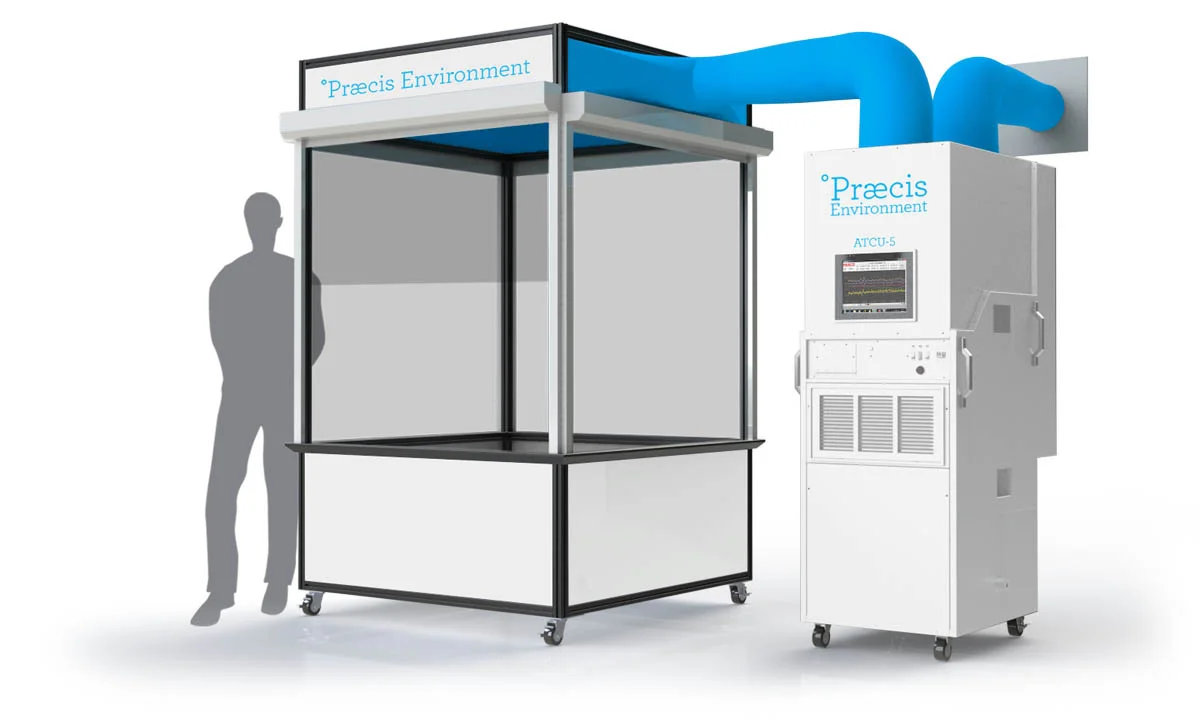

Praecis Environment-5 Complete System. Test Bench. View 3.

Praecis Environment-5 Complete System. Test Bench. View 3.
